Photo atlas / region
Top end
6 photos. Click any photo to see it full size.
Before

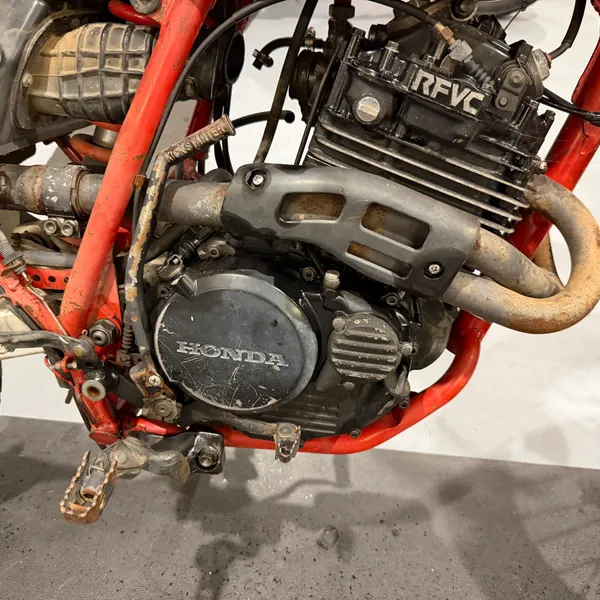

Left side of the engine. RFVC head, header pipe, countershaft cover. Everything is here, it just all needs attention. During

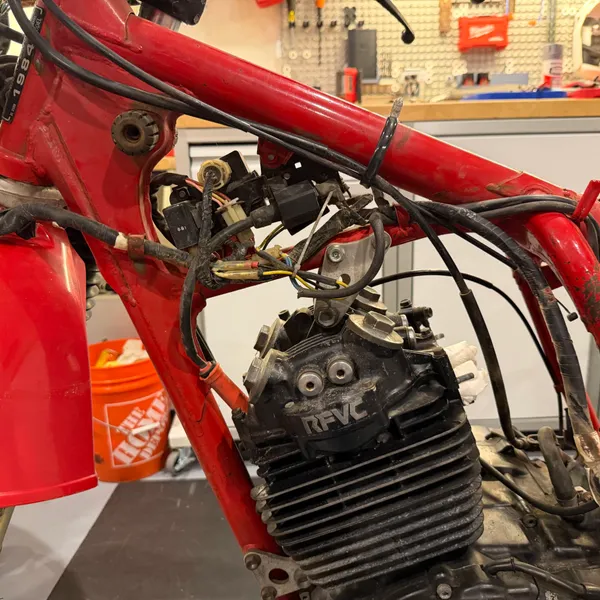

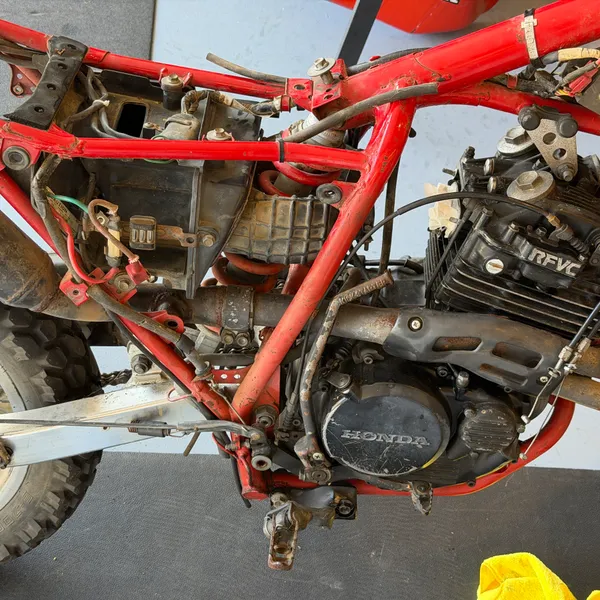

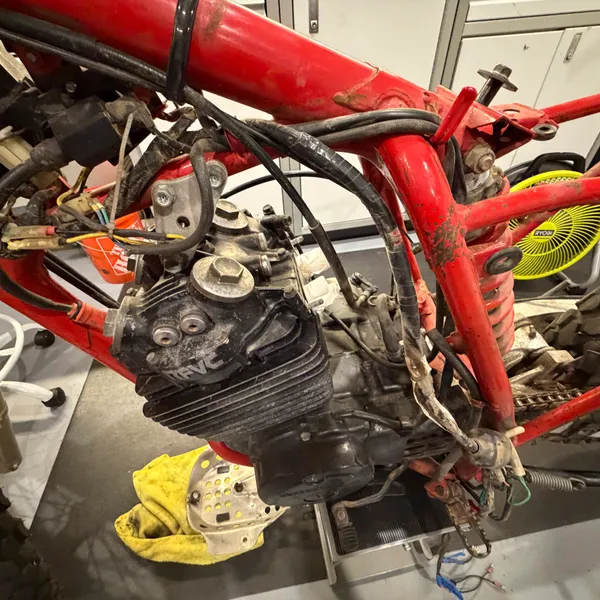

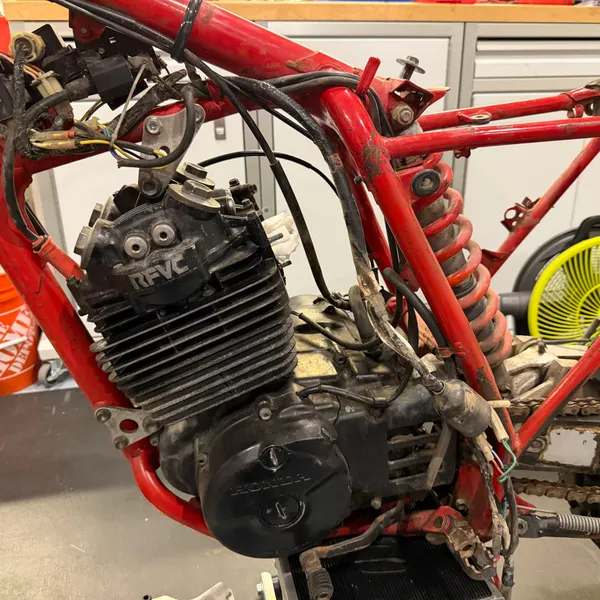

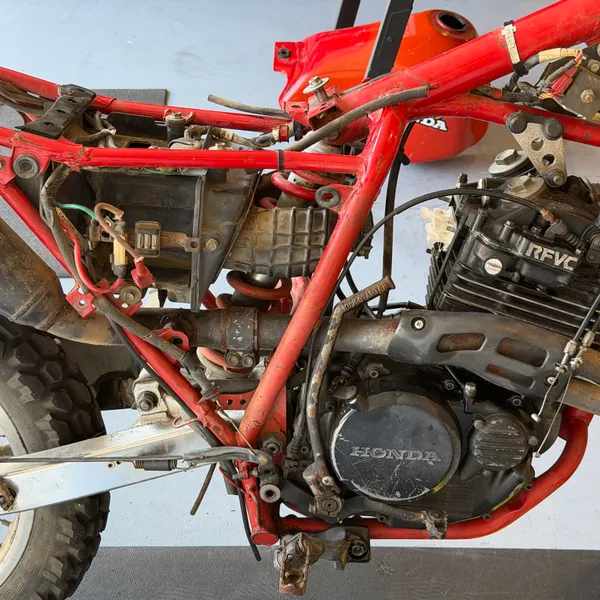

Engine in the frame with the tank, airbox, carbs and header all off. RFVC head, left side. Front fender still on at this point.Head from the left, exhaust port open. Yellow rag in the port to keep things out.Engine from the left, three-quarter. This is the clearest shot I have of the whole engine in the frame.Left side, tank off, carbs already out. The intake stub on the head is exposed.Same side, slightly wider. Footpeg, kickstarter, header pipe still on.
