Wheels & brakes

6 photos. Click any photo to see it full size.

Before

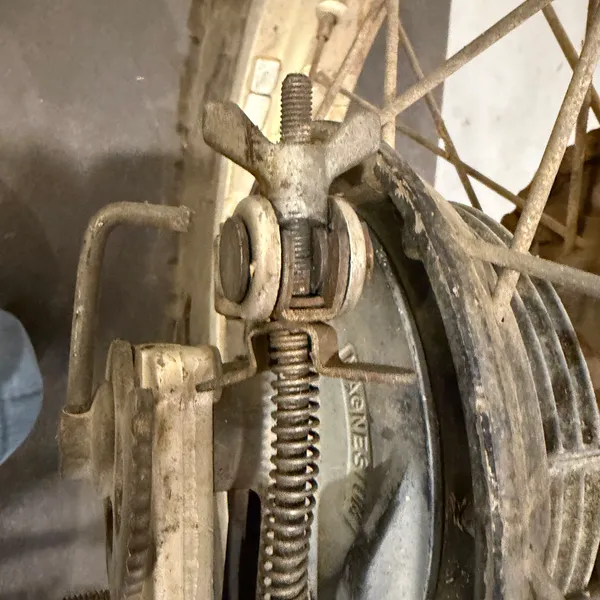

Rear brake arm and adjuster at the drum, with the return spring. Adjuster wing nut still turns.
from Front fender, harness, and the rear brake pedal

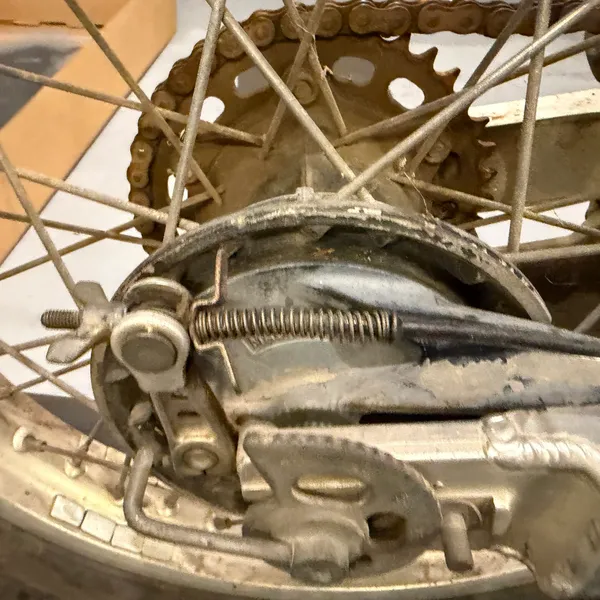

Rear hub, drum brake arm and the chain adjuster. Chain is rusty and due.
from Front fender, harness, and the rear brake pedal

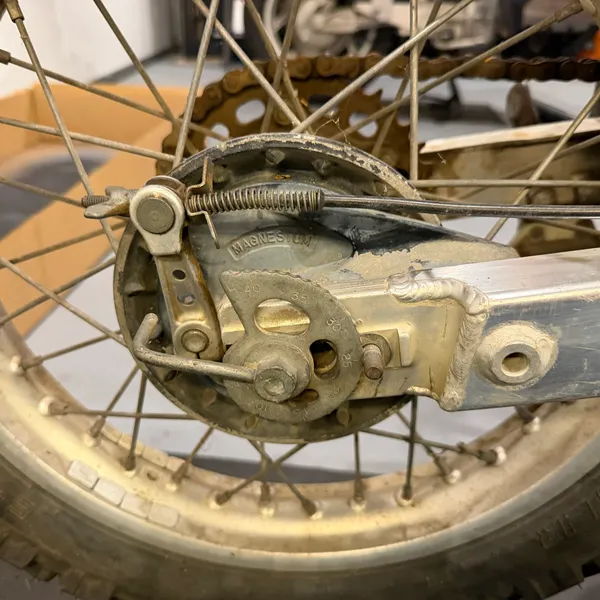

Rear brake arm and torque link from the left, showing the rod and the cotter pin.
from Front fender, harness, and the rear brake pedal

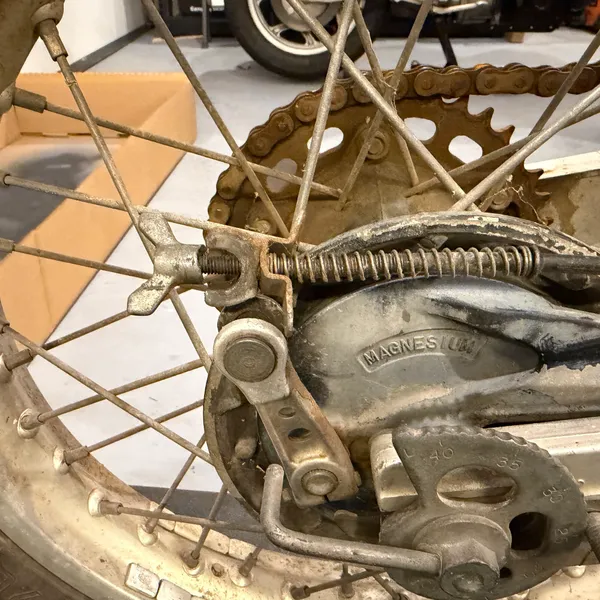

Closer on the brake arm, spring and rod end. Note the orientation of the spring hook.
from Front fender, harness, and the rear brake pedal

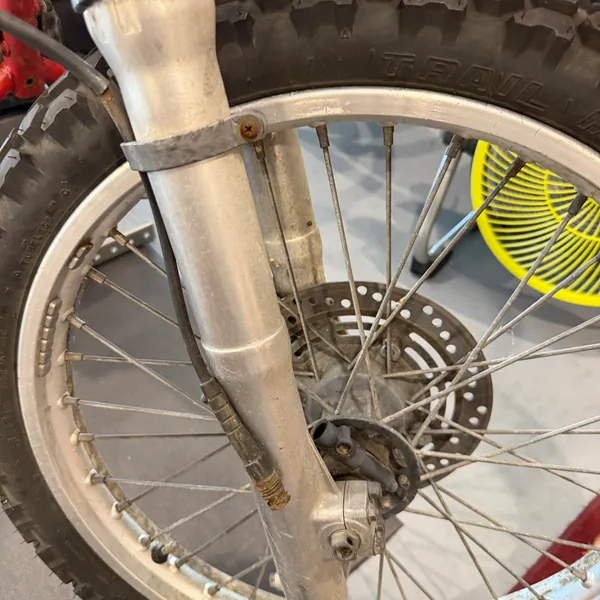

Front wheel and brake: a single disc with the caliper on the left fork leg. Rotor is scored but usable.
from Odometer, front brake, and a bent bracket

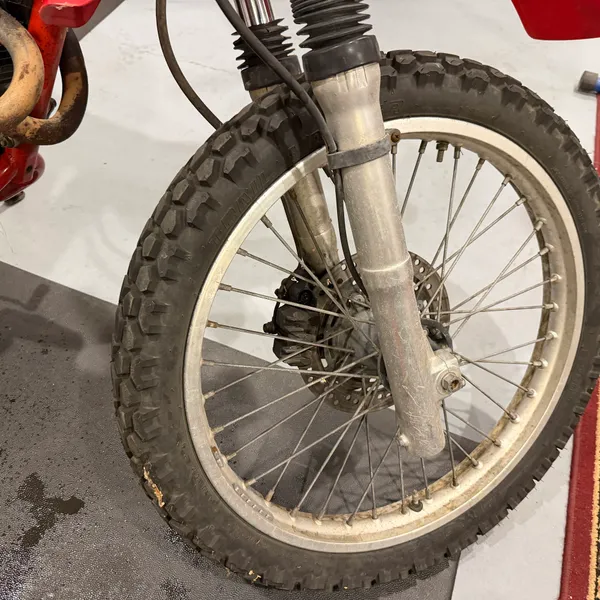

Front wheel and fork lowers. Fork seals are weeping, tire is old but holding air.
from Day one: it's in the garage
