Photo atlas / region

Cables & controls

10 photos. Click any photo to see it full size.

Before

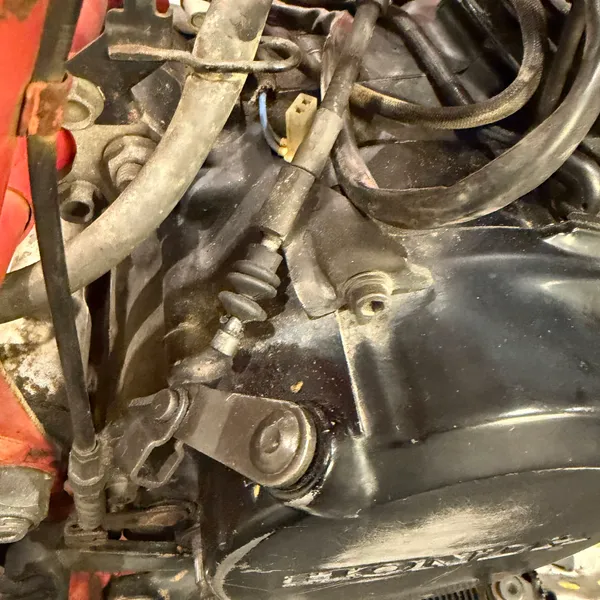

Right side: rear brake pedal, brake rod, and the brake light switch spring, with the right engine cover behind.
from Front fender, harness, and the rear brake pedal

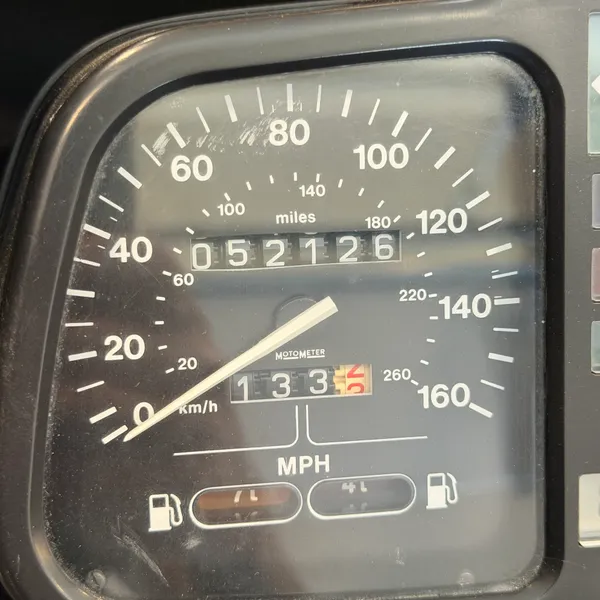

Odometer reads 5,212 miles. Whether that's the first or second trip around is anyone's guess. Speedo face is clean under the dust.
from Odometer, front brake, and a bent bracket

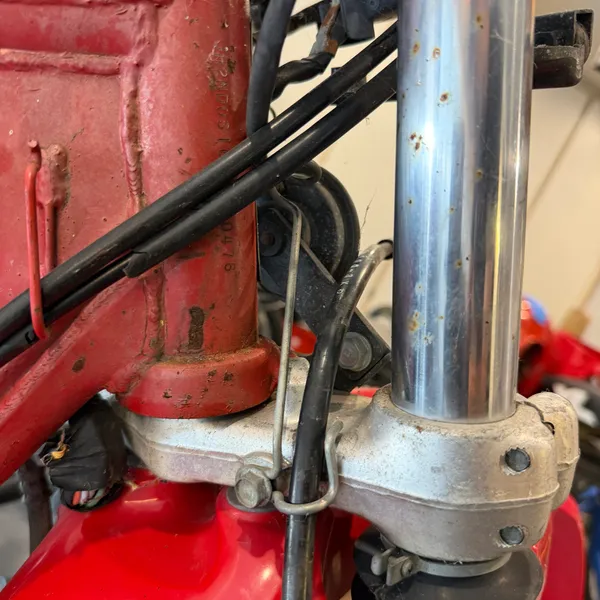

Lower triple clamp, right side, with the cables routed down the fork leg. Note the order they stack in.
from Odometer, front brake, and a bent bracket

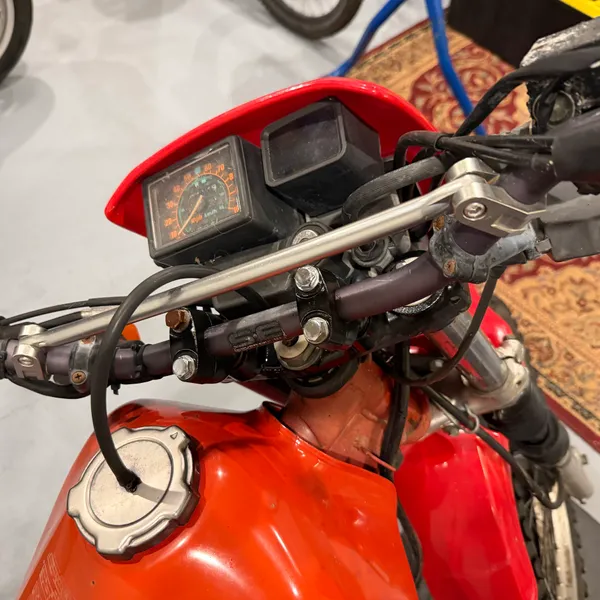

Cockpit. Speedo, warning light pod, bars and controls, all original. Dirty but complete.
from Day one: it's in the garage

During

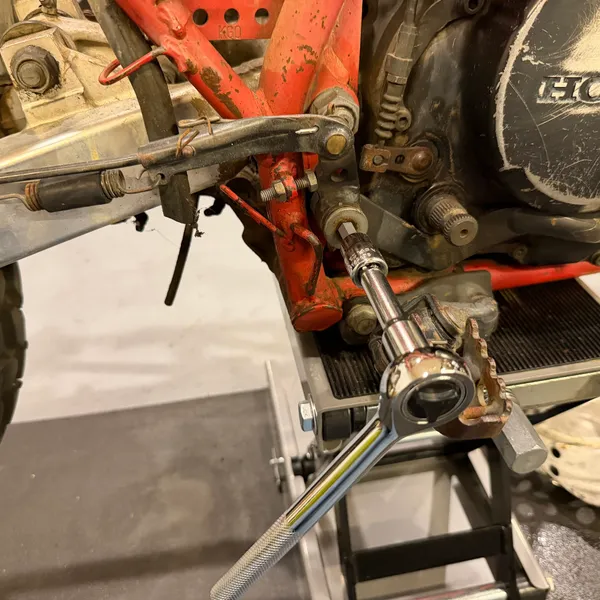

Ratchet on the brake pedal pivot nut, with the right footpeg bracket above.
from Front fender, harness, and the rear brake pedal

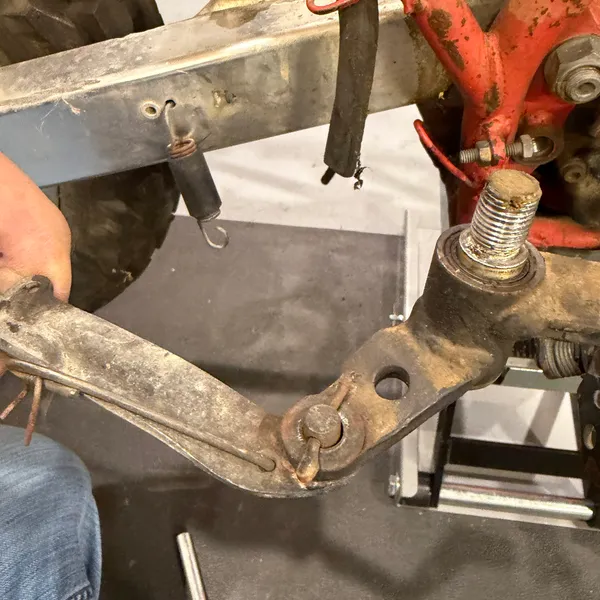

Brake pedal off its pivot. Return spring still hanging on the frame, pivot stud exposed with its washer. The clevis at the end is where the rod attaches.
from Front fender, harness, and the rear brake pedal

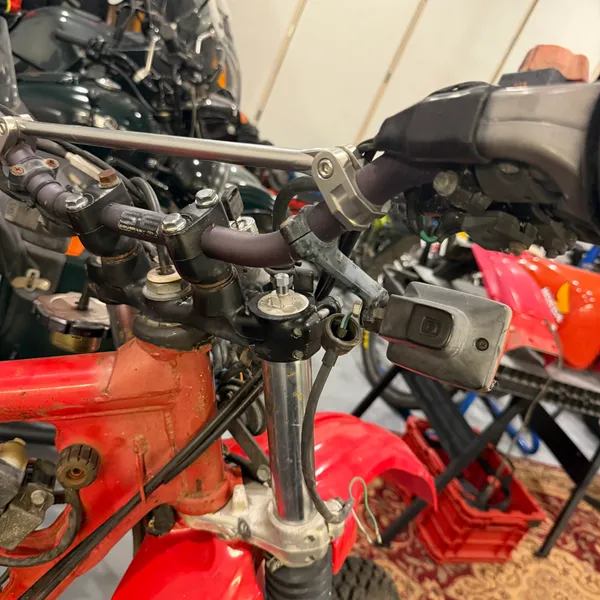

Front end from the left with the headlight off. Signal, stay, bars, and the brake master cylinder.
from Turn signals off

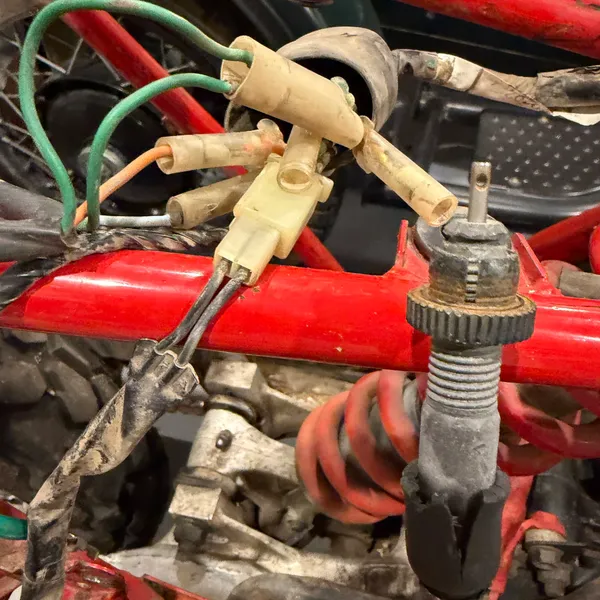

Cable adjuster with its knurled lock nut, hanging free now that the carbs are off, next to the bullet connectors by the shock. The cream connector block and green wires are the rear harness branch.
from A cable and a knurled nut

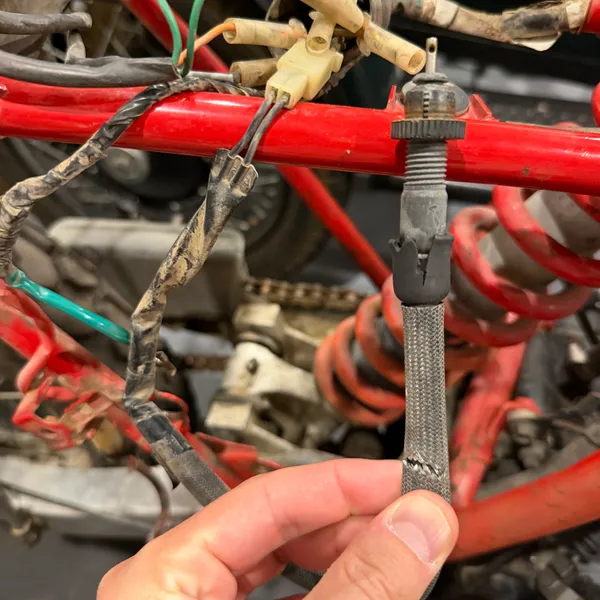

Same cable, held up. The braided outer sheath is original; the rubber boot at the adjuster end is split.
from A cable and a knurled nut

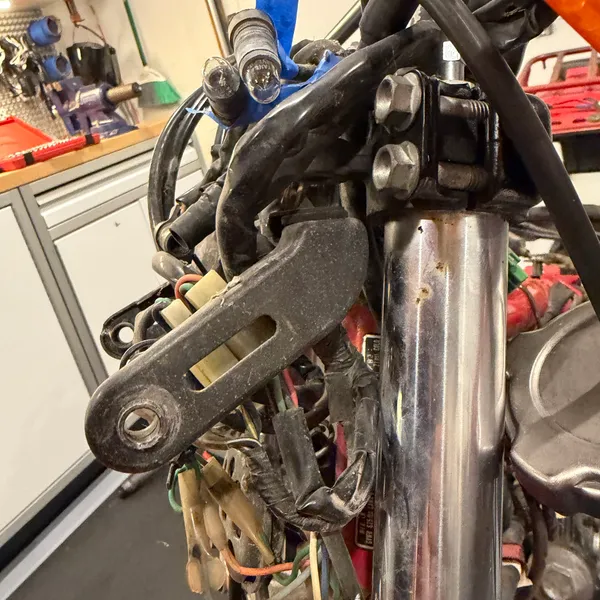

Right side headlight stay and the throttle cable routing over the top clamp.
from Behind the headlight
